Classwork 9/7



Voltage Supply: 5
LED forward voltage: 2.2
LED current: 20 in milliamps
Resistor value (R1): 140
Wattage (R1); 0.056


 Voltage Supply: 5
LED forward voltage: 2.1
LED current: 10 in milliamps
Resistor value (R1): 290
Wattage (R1): 0.029

 Voltage Supply: 5
LED forward voltage: 2
LED current: 20 in milliamps
Resistor value (R1): 150
Wattage (R1): 0.06

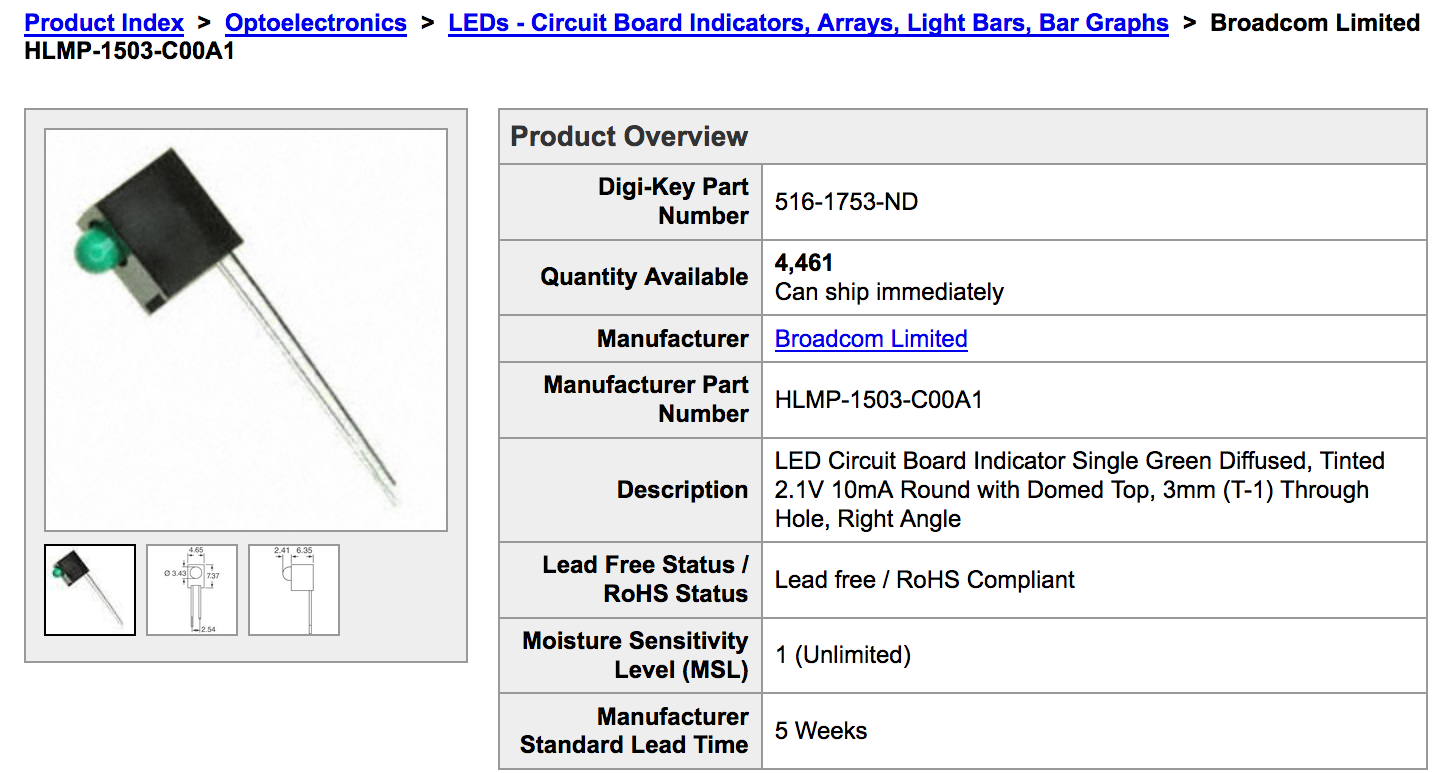

  Voltage Supply: 5
LED forward voltage: 2.1
LED current: 10 in milliamps
Resistor value (R1): 290
Wattage (R1): 0.029



  Voltage Supply: 5
LED forward voltage: 2
LED current: 50 in milliamps
Resistor value (R1): 60
Wattage (R1): 0.15
